BTU Meter
The ETI Model 510 BTU Meter is a multi-energy gamma online analyzer that measures ash, moisture, heating value, and density of coal feeding through a vertical pipe into a boiler feeder; continuously and without contact.
Turn continuous BTU data into better combustion decisions
Know your fuel quality in real time
Continuous ash, moisture, heating value, and density data, updated every 60 seconds, without pulling a single sample.
Respond before the boiler feels it
See fuel quality changes as coal moves through the feeder pipe, not after a boiler issue reveals a problem.
No contact, no process interruption
The analyzer clamps to the outside of the feeder pipe. Nothing touches the coal stream.
Applications
Coal-Fired Power Generation
In coal-fired power plants, the Model 510 provides continuous data on ash, moisture, heating value, and density, enabling operators to optimize combustion, reduce emissions, and maintain consistent boiler performance without manual sampling.
Industrial Boilers
Industrial boiler operators use the Model 510 to monitor incoming coal quality in real time, enabling fuel blending decisions and combustion adjustments that improve efficiency and reduce unplanned downtime.
Coal Blend Management
Use real-time BTU data to guide coal blending decisions and maintain consistent heating value in the boiler feed; reducing variability and improving combustion control.
Emissions Compliance
Provide continuous heating value data to support combustion efficiency calculations and emissions compliance reporting.
Case Study
Otter Tail Power: Coyote Station
Otter Tail Power Company installed two ETI Model 510 BTU Meters on the vertical coal feeder pipes at their Coyote Station coal-fired power plant in Beulah, North Dakota. The analyzers provide continuous ash, moisture, heating value, and density data, enabling operators to optimize combustion and maintain consistent boiler performance without manual sampling.
Request a QuoteKey Benefits
From Data to Decision
Continuous BTU data is only valuable when it drives action. The Model 510 feeds real-time measurements directly into the decisions that control fuel quality and boiler performance.
Combustion optimization
Adjust boiler parameters in response to incoming fuel heating value changes, maintaining efficient combustion without waiting for lab results.
Coal blending
Use real-time BTU data to guide blending decisions and maintain consistent heating value in the boiler feed; reducing variability and improving combustion control.
Fuel quality management
Detect changes in incoming coal quality, including ash, moisture, and heating value, as they happen, not after a boiler issue reveals the problem.
Emissions compliance
Provide continuous heating value data to support combustion efficiency calculations and real-time emissions compliance reporting.
How It Works
The Model 510 uses the principle of differential gamma attenuation: multiple radioactive sources emit gamma radiation at different energies through the pipe wall and coal stream. Because different elements attenuate gamma energy differently based on their atomic number, the detector response yields ash, moisture, heating value, and density simultaneously, with no sampling or process interruption.
Dual Gamma Sources
Two sealed radioactive sources are mounted in a shield clamped to the vertical feeder pipe: a low-energy Am-241 source and a high-energy Cs-137 source. Both irradiate the full coal stream simultaneously.
Selective Attenuation
The two sources are attenuated differently as gamma energy passes through the coal. Cs-137 is attenuated only by the total mass of material in the pipe. Am-241 is attenuated by both the total mass and the principal ash-causing elements; silicon, iron, aluminum, and calcium. Using the Cs-137 signal to normalize for pipe loading, the analyzer isolates ash content from the Am-241 reading; so accurate measurement does not depend on maintaining a consistent flow rate.
Energy-Sensitive Detection
A radiation energy-sensitive detector mounted on the opposite side of the pipe measures the transmitted gamma spectrum at each energy level.
Automatic Load Compensation
The analyzer's automatic load compensation module corrects for variations in coal flow rate and pipe loading, ensuring accurate readings regardless of process fluctuations.
Real-Time Data Output
The Data Acquisition Unit processes detector signals every 3 seconds and outputs ash, moisture, heating value, and density to plant control systems via analog, digital, Modbus TCP/IP, or SQL database.
Source and detector assembly clamped to opposite sides of the vertical feeder pipe
Technical Specifications
U.S. Patent # 7,243,414B2
System Components
The analyzer system consists of:
- Model 510 Multi-Gamma Analyzer (MGA)Fixed nuclear gauging device using sealed radioactive sources depending on application. Source shield mounts on the vertical feeder pipe and collimates a conical fan radiation beam through the coal stream. Energy-sensitive detector mounts on the opposite side of the pipe. Total weight: 350 lbs. (≈159 kg).
- Model 900 Data Acquisition Unit (DAU)NEMA 4 electronics enclosure with fully digitized data acquisition and control electronics, uninterruptable power supply (UPS), detector temperature control and monitoring, I/O modules, circuit breakers, and managed network switch. Wall-mountable. Dimensions: 36 in. H × 30 in. W × 13 in. D (91 × 76 × 33 cm). Weight: 170 lbs. (≈77 kg). Max distance to analyzer: 328 ft. (100 m).
- Interconnecting CablingComplete set of signal cables, power cables, and special connectors between the MGA and DAU. Maximum cable length: 328 ft. (100 m).
- ETI DataView Software PackageMonitors all aspects of the analyzer: spectral shape, count rate, resolution, dead time, detector temperature, calibration parameters, and final data. View data from 3-second measurements to daily totals with configurable tabular and graphical displays.
Measured Parameters
- Ash
- Moisture
- Heating Value (BTU)
- Density
Radioactive Sources
| Isotope | Activity |
|---|---|
| Am-241 | 300 mCi |
| Cs-137 | 20 mCi |
Plant Integration
Readings are taken every 3 seconds and averaged over 60 seconds. Output is available via analog connections or direct database access for seamless integration into plant control systems. ETI DataView client software provides real-time dashboards, historical trending, and batch reporting on any plant workstation.
Data Outputs
- Analog Outputs4 channels, configurable for 0-20 mA or 4-20 mA signals
- Digital Outputs4 channels, configurable for 24 VDC signals
- Modbus TCP/IPStandard industrial communication protocol
- SQL DatabaseDirect database access for Plant Information systems

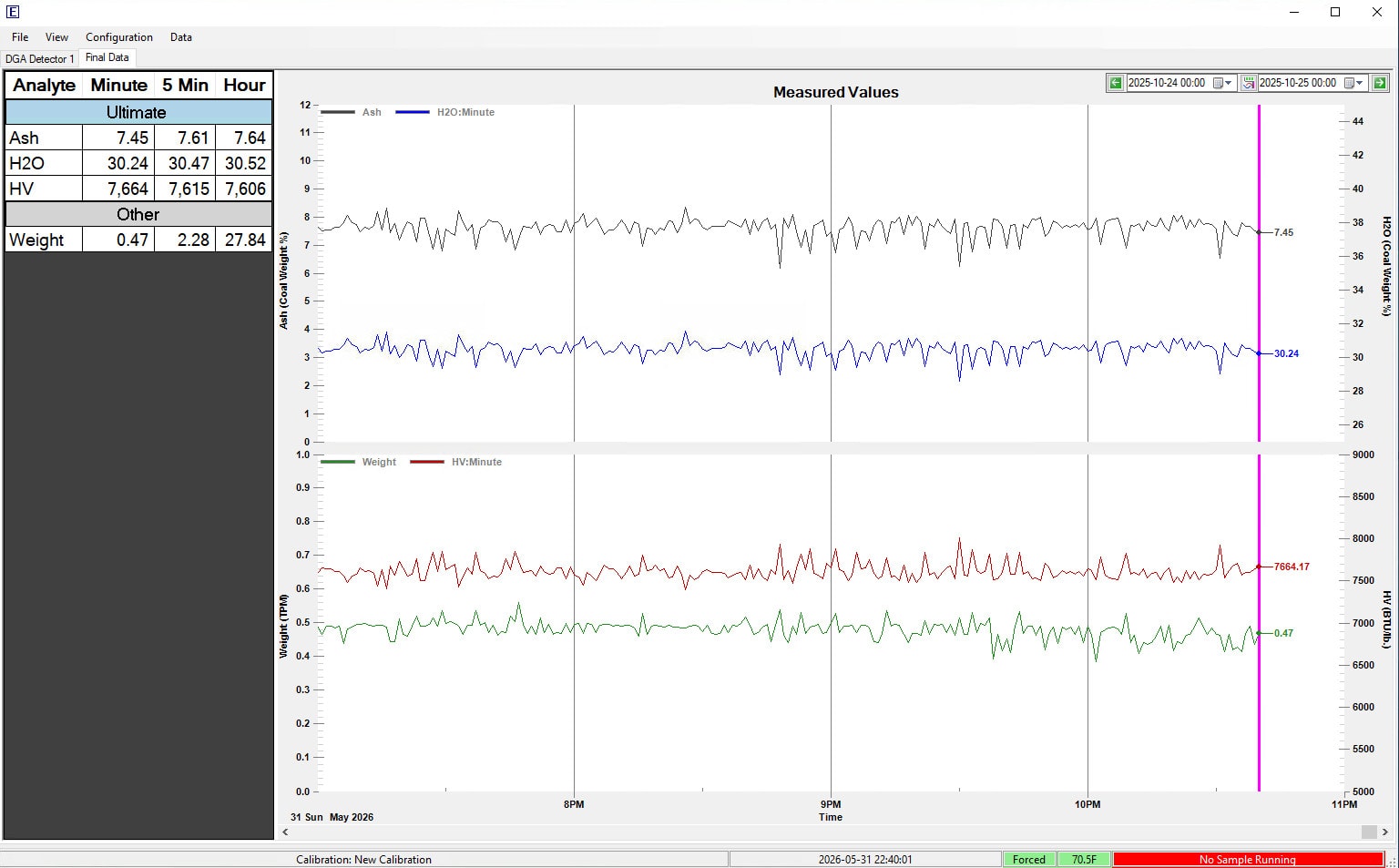

ETI DataView showing real-time ash, moisture, heating value, and weight measurements with minute, 5-minute, and hourly averages alongside continuous trend charts.
One year of service included
Every ETI system ships with one full year of support, unlimited phone, email, and remote VPN access, plus one scheduled site visit for inspection, calibration, and NRC-required leak tests.
